Product Features:
FFC (Flexible Flat Cable) with a small, simple connection, winding resistance, abrasion resistance, easy to weld, high precision, good flexibility and excellent performance.
Product application areas:
Computers, digital cameras, printers, copiers, scanners, video machines, audio-visual equipment, communications, MP3, monitors and other electronic products in various fields.
Production specifications:
There Pitch0.3mm, Pitch0.5mm, Pitch0.8mm, Pitch1.0mm, Pitch1.25mm, Pitch1.5mm, Pitch 2.0mm, Pitch2.54mm, EMI conductive aluminum foil, copper foil, polyester tape, polylines, LVDS, car safety airbag lines.

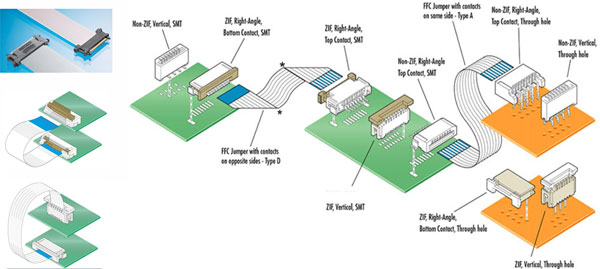

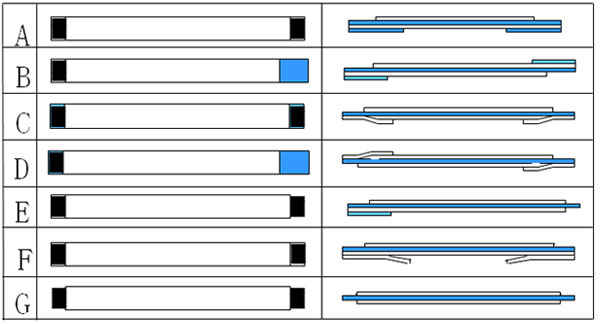

FFC type of product standards
Product Attributes
| Item |
Test Method |
Specification |
| Insulation Resistance |
DC 500V |
More than100MΩ.m |
Dielectric strength between
conductors |
AC 500V，duration 1minute |
No material breakdown |
| Conduction Test |
DC3.0V 0.1mA |
No open and Short Circuit |
| Conductor Resistance Test |
Normal temperature and humidity |
≤2260mΩ/M |
| Coating thickness Test |
Indoor environment,test duration for 30seconds. |
Ni≧20ｕ”
Au≧3ｕ” |
| Match Test |
Continue to mate and unmate with the connectors for 30
cycles. |
Conductor not peeling |
| 180 degree folding test |
Folding Morther 20times |
No broken with insulation and no open
circuit |
| Abrasion Test |
0.5R 600g, 60 times/Min,More than 10,000 Times |
No broken with insulation and no open
circuit |
| Flexibility Test |
R:10mm,Speed:160cycles/min.Displacement:30mm,More
than 100,000 Times |
No broken with insulation and no open
circuit |
| Heat Resistance Test |
105℃ for 96hours |
Insulation resistance≥100MΩ.m
Dielectric strength test with
AC500V/1min no brokendown |
| Cold Resistance Test |
-40℃ for 96hours |
Insulation resistance≥100MΩ.m
Dielectric strength test with
AC500V/1min no brokendown |
| Humidity Resistance Test |
40℃,95﹪RH,96H |
Insulation resistance≥100MΩ.m
Dielectric strength test with
AC500V/1min no brokendown |
| Temperature Cycle Test |
[-40℃*(4H)→25℃*(1H)→105℃*(4H)→25℃*(1H)] × 5
cycles |
Insulation resistance≥100MΩ.m
Dielectric strength test with
AC500V/1min no brokendown |
| Salt Water Spray Test |
Temperature：35℃ Salt concentration：5%
Duration：48H Salt PH value：6.5-7.2
Sample located angle:15º-30º |
No bare conductor |
| Adhesive force of Conductor |
Normal temperature and humidity |
（WIQA08） |
Adhesive force of supporting
tape |
Normal temperature and humidity |
（WIQA08） | |
